"Tanner"

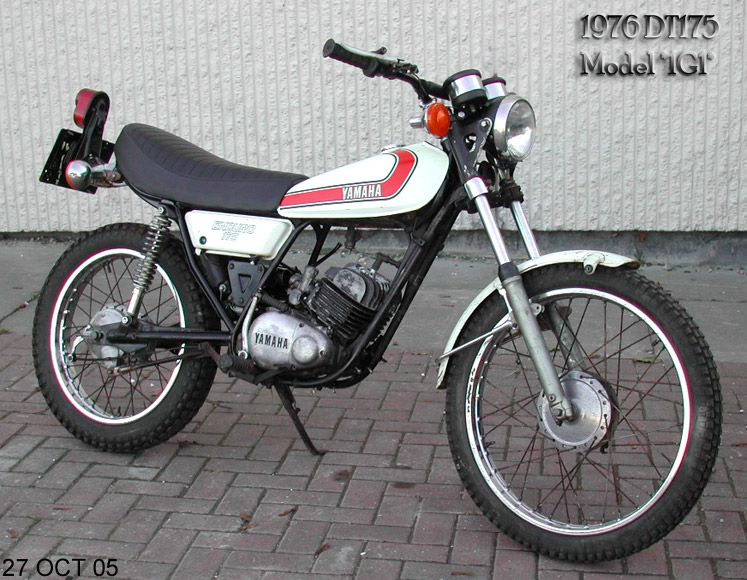

1976 DT175 Enduro
model designation 1G1
 "Tanner" "Tanner" "Tanner"

Bought for £75 as a boxes of bits and a rolling chassis

Now undergoing extensive repairs and rebuild/re-paint/re-chrome.
named "Tanner" because of the 6P in the registration number
(a tanner was the nickname for an old UK coin - sixpence)
From Yamaha's database, its the 500th one built.

It looks like it was taken off the road because the piston was breaking up. It had been standing for a considerable time as a lot of the parts were very rusty. Various bodges have been found during the initial strip down. The rear sprocket is almost smooth - devoid of teeth! A few parts (rear mudguard, headlamp and headlight mountings) have been painted in black - very badly. The exhaust system is rotted through quite badly and it will require extensive welding if its to be re-used. Right now the bike has been hastily put back together to enable a list of required parts to be drawn up. I was given a "low" mudguard for the bike which I think maybe off a TY175, but that's the one I will use for the rebuild as primarily the bike will only be used on the road.

Already I have bought some parts off E-Bay for the bike;
Seat, wiring harness, oil tank, another headlight (also in black....hmmm)
a new exhaust pipe from the US at great expense. I recently  bought a new
piston & rings so its just been rebored.

A whole heap of the parts have been sand or bead blasted;
Cylinder head, barrel, headlight bowl, headlight mounts, chain guard, chain guide
engine skid plate, number plate/light mounting, rear light base etc.

ELTEC Metal Finishers
Grit, Bead & Vapour blasting
Welding, Polishing & Painting
Antique metalwork or Auto & motorcycle parts
01895 421000
07778 439028

I expected to have he bike somewhere near roadworthy in Summer 2006 (dream on)


piston broke! So am I! rot!!!!

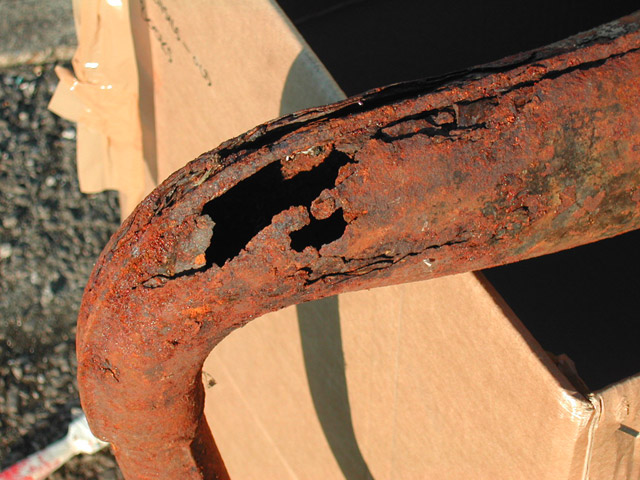

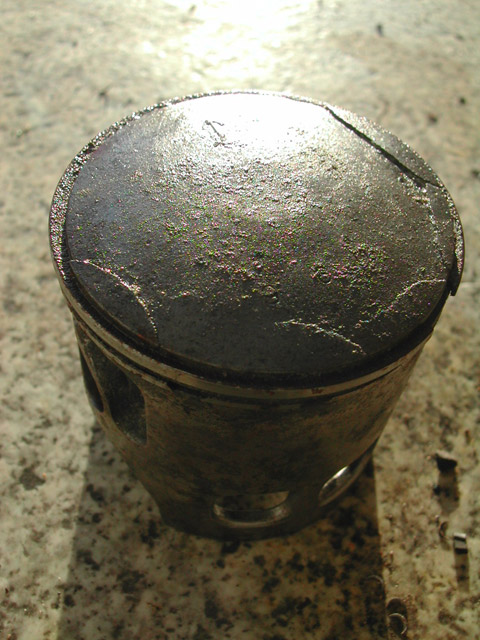

piston crown showing the break up rotten exhaust system
frame done! ready to fit!
10-Dec-06

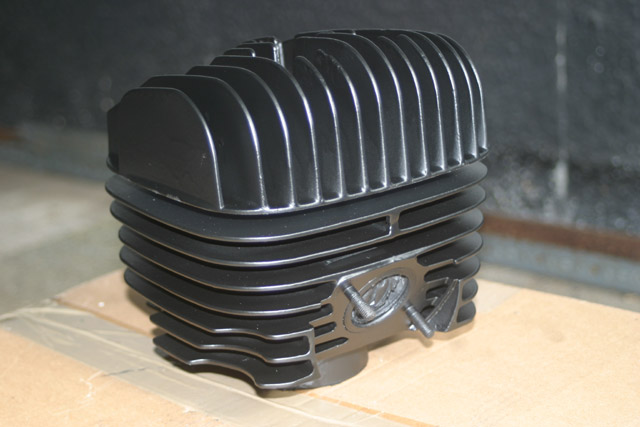

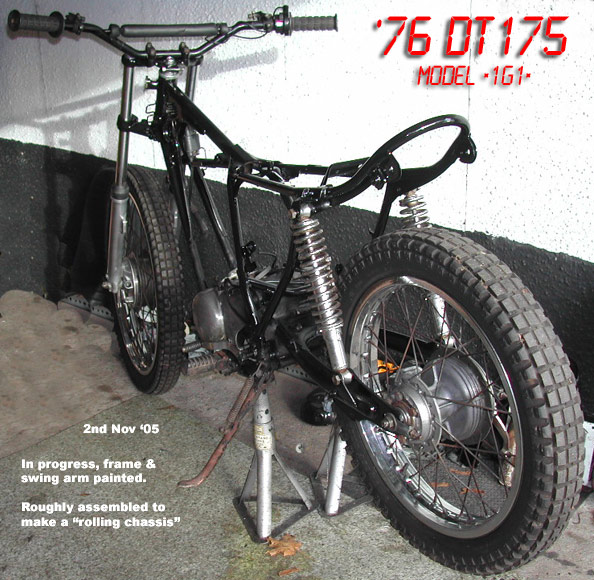

re-painted rolling chassis re-bored & re-painted barrel
Work in progress

The bottom end of the engine is in the frame and the suspension is roughly assembled
so I can wheel it in and out of my garages. Until parts start showing up, I've come to a halt :(



Hmmm, continuing parts list...

 small end bearing,  fork leg(s), levers, battery, chain & sprockets,
 rear wheel spindle, brake shoes and springs, head race bearings
